Description of the algorithm

Introduction

acorns follows the philosophy of hierarchical agglomerative clustering (HAC). HAC methods fall into two main categories: bottom-up or top-down. acorns follows the bottom-up approach in that each singleton data point begins its life as a cluster. Traditionally, clusters then merge until only a single cluster remains that contains all of the data. The output of this technique is often visualised graphically as a dendrogram, which have become popular in astronomy as a convenient way of representing and interpreting the hierarchical nature of molecular clouds (see e.g. Rosolowsky et al. 2008).

Briefly, clustering in acorns commences with the most significant data point. In the analysis presented in this work this refers to the data point with the greatest peak intensity. However, given its applicability of to different systems, this may instead refer to, for example, a density, column density, or mass. acorns attempts to merge this cluster to already-established clusters in the hierarchy, based on criteria supplied by the user. It then descends in significance, merging clusters along the way, until a hierarchy is established.

Input is an array of \(n \times m\) dimensions, where \(n\) is a minimum of 4, but in principle has no upper limit and depends on how many parameters the user wishes to use during the clustering procedure. As an example, its simplest form, i.e. clustering in two spatial dimensions, this array should consist of: x position, y position, intensity (or equivalent), and an uncertainty on the intensity (or equivalent). If linking in PPV, an additional column for the velocity is a mandatory requirement.

The linking of clusters is handled via the supply of an array containing \(n-3\) elements (or \(n-4\) if linking in PPP) which describes the clustering criteria (cluster_criteria). Here, the user must supply the maximum spatial euclidean distance between data points, as well the maximum absolute difference in any other variable used for linking. If the separation between two data points satisfy these criteria, the data points are considered to be linked.

In addition the user must supply the following parameters:

  • The pixel size in the spatial dimension (pixel_size).
  • The radius of the smallest structures the user would like acorns to look for (min_radius).
  • The minimum height above a merge level for a cluster to be considered as a separate structure (min_height).
  • The stopping criteria. Given as a multiple of the rms noise level (stop).

Main method

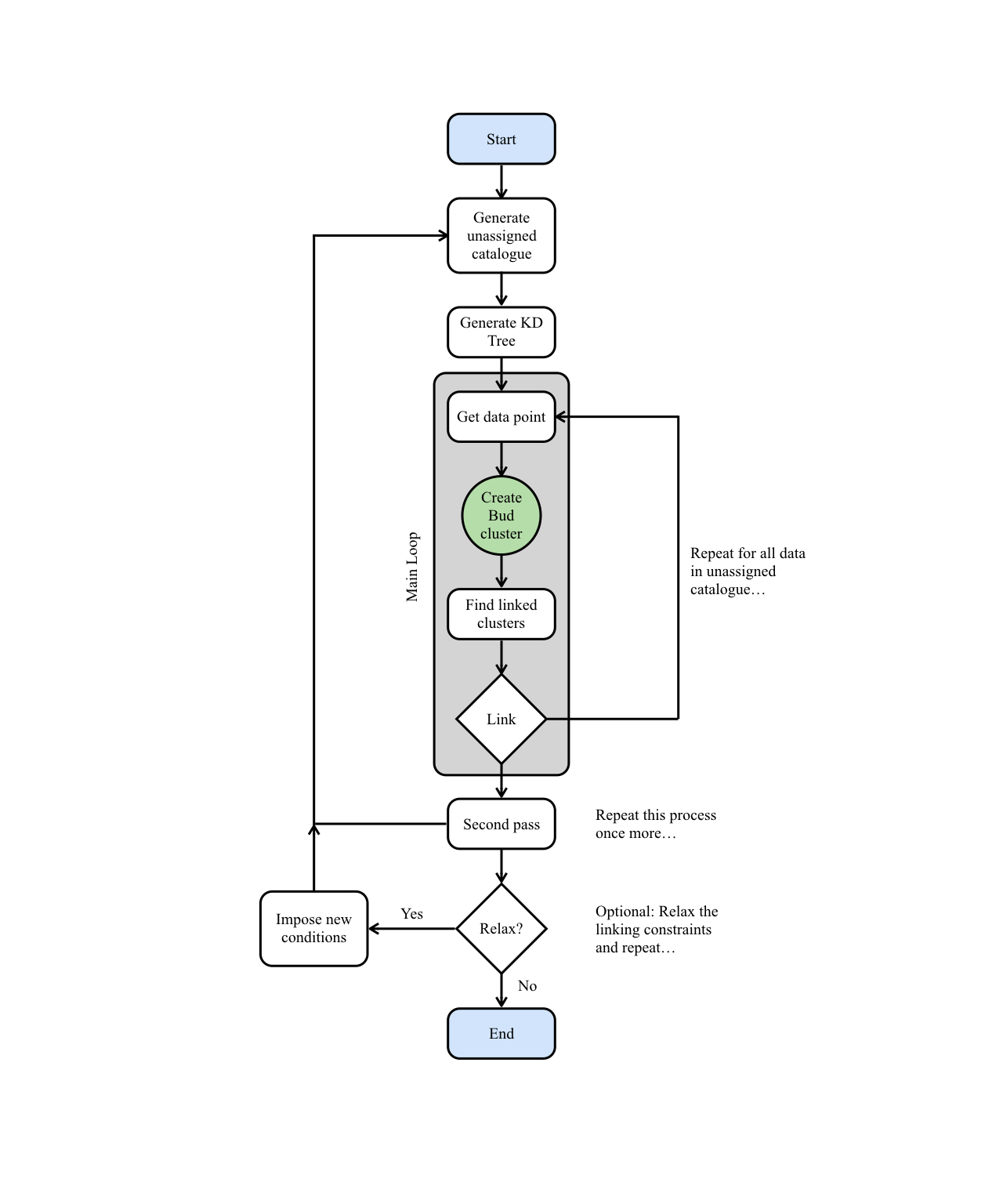

The main steps taken by acorns in developing the hierarchy are illustrated in the following flow diagram and in the steps below:

_images/flowchart_002.jpg
  1. acorns begins by creating a catalogue of the currently unassigned data. All data whose intensity, \(I\), satisfies the following criterion are added to this catalogue, \(I > stop \times {\sigma}_{rms}\). Where \({\sigma}_{rms}\) refers to the noise level at that position. The unassigned data is then rearranged in descending order of \(I\).
  2. These data are used to generate a kd-tree, which can be queried to return the nearest neighbours to a given point.
  3. Starting with the first data point in the unassigned catalogue, and looping over all data points in the unassigned catalogue, {sc acorns} implements the following steps:
    1. acorns first generates a bud cluster. Extending the nomenclature of Houlahan & Scalo 1992, a bud cluster refers to a structure which has not yet met the criteria to become a leaf in its own right (where leaves are the clusters situated at the top of the hierarchical system).
    2. acorns queries the kd-tree to find all data points which are within some maximum euclidean distance (provided in cluster_criteria) from the bud cluster. If additional linking criteria are supplied by the user, acorns then computes the maximum absolute difference in the desired property between the bud cluster and these data points. This is then also checked against the linking criteria supplied within cluster_criteria.
    3. All data satisfying the clustering criteria are then cross-referenced against the current cluster catalogue to see if they belong to an already established cluster within the hierarchy. If so, a link is established and the hierarchy grows.
  4. Once acorns has cycled through all data points in the unassigned catalogue, it begins a second loop. The cluster catalogue is first cleaned of any bud clusters and these data are used to generate a new unassigned catalogue. This step picks up any data points that were unable to be linked during the first pass of the algorithm.
  5. If specified by the user (relax), the clustering criteria are relaxed and acorns performs additional loops based on this new criteria. This helps to further develop the hierarchy
  6. acorns then discards all remaining bud clusters since they did not meet the criteria to become fully-fledged clusters.

As output acorns returns a system of clusters. In a given hierarchy, the antecessor is the largest common ancestor of all clusters within that hierarchy (note that for a given dataset there may be multiple antecessors and each of them may or may not have descendant substructure). Expanding the nomenclature typically used in describing dendrograms (see e.g. Houlahan & Scalo 1992), an antecessor refers to a tree in a forest of clusters. Each tree may or may not exhibit substructure, referred to as branches and leaves.

Growth of the hierarchy

The procedure employed by acorns during the growth of the hierarchy is described in the following flow chart. This growth strategy is adapted from the methods of astrodendro and quickclump. However, key differences in the algorithms (namely working with discrete data, rather than data cubes) necessitate important differences in the details of each step.

_images/flowchart_003.jpg

After establishing a link between the bud cluster and already-established clusters in the hierarchy (see step 3c above), what happens next depends on the number of linked clusters that are identified:

  • If no linked clusters are identified, the bud cluster is added to the cluster catalogue as a new cluster.
  • If only a single cluster is identified as linked, the bud cluster is merged into this already established cluster.
  • If multiple linked clusters are identified, further decision making is required (see Resolve ambiguity in the flow diagram). acorns first of all determines how many of the linked clusters are true clusters (i.e. not bud clusters). Once this has been determined, what happens next depends on how many fully-fledged clusters our bud cluster is linked to:
    • If none, then this tells us that all of the clusters linked to our bud must also be bud clusters. We merge our bud cluster into one of these other buds.
    • If only a single linked cluster remains we merge the bud cluster into this already established cluster.
    • If multiple linked clusters remain, a branch cluster is formed - a new level in the hierarchy.
  • As a final step. All remaining bud clusters (if any) are then merged with the same cluster as our original bud cluster.
